Vacuum-molded scale pilots (.007 white styrene)
and radial engines (.020 black styrene) specifically designed
for free flight models. Highly detailed and ready to paint. Light
enough to use in any flying model. Manufactured by Small Scale
Custom Services. Pilot scale and engine diameter as
specified. Pilots are 3 dimensional, includes front and back halves.
(Shown at uniform height for layout purposes.) Measurements are
our own approximations. Charts below show pilot and engine dimensions.
(All dimensions are in inches.)
Pilot Dimensions
(given in inches)
Item #
Scale
Weight
in
Grams
Height of Bust
Width of Bust @ widest pt
Width of head or helmet
if present
Top of Head to Bottom of
Chin
P01
1:10
5.7
2.4
2.125
0.79
1.1
P02
1:12
1.0
1.95
2.2
0.72
1.0
P03
1:12
1.75
1.77
1.66
0.82
0.83
P04
1:12
1.7
1.64
1.75
0.67
0.88
P05
1:12
1.0
1.70
1.6
0.76
0.86
P06
1:12
1.1
1.82
2.09
0.89
1.10
P07
1:12
1.6
1.54
1.82
0.70
0.95
P08
1:14
0.75
1.57
1.43
0.65
0.75
P09
1:16
1.4
1.41
1.3
0.58
0.75
P10
1:19
1.3
1.38
1.51
0.58
0.70
P11
1:20
0.70
1.28
1.3
0.54
0.60
P12
1:24
0.50
0.90
0.96
0.42
0.44 (3 pilots)
P13
1:36
0.30
0.68
0.75
0.32
0.38 (3 pilots)
P14
1:18
0.75
1.0
0.9
0.66
0.66
P15
1:15
0.90
1.44
1.4
0.58
0.70
P16
1:15
1.0
1.38
1.63
0.60
0.70
P17
1:15
1.0
1.4
1.48
0.54
0.72
Engine Dimensions (given in inches)
Item #
Number
Cylinders
Weight
in
Grams
Engine
Diameter
Cylinder
Width
Cylinder
Height
E01
9
0.75
1.40
0.27
0.40
E02
7
0.80
1.35
0.21
0.34
E03
9
1.90
1.55
0.24
0.44
E04
9
1.70
2.25
0.40
0.61
E05
9
1.60
2.25
0.30
0.60
E06
7
1.50
2.10
0.42
0.67
E07
9
2.70
1.90
0.34
0.44
E08
9
2.80
2.10
0.38
0.52
SCALE PILOTS

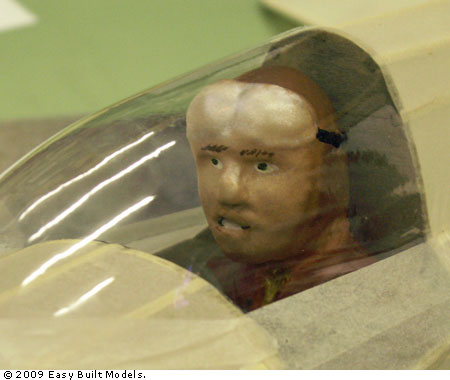

Item # P18
Pilot "Russ" for the Chambermaid
specifically designed for kit PD09
$4.92 -
Item # P01
1:10
Scale Male Pilot
goggles up
Weighs 5.7 grams
$5.89 -
Item # P02
1:12 Scale Male Pilot
goggles up
Weighs 1.0 grams
$5.11 -
Item # P03
1:12
Scale Female Pilot
goggles up
Weighs 1.75 grams
$5.11 -
Item # P04
1:12
Scale Male Pilot
Weighs 1.7 grams
$5.11 -
Item # P05
1:12 Scale Male Pilot
Weighs 1.0 grams
$5.11 -
Item # P06
1:12
Scale Male Pilot
with helmet
Weighs 1.1 grams
$5.11 -
Item # P07
1:12 Scale Male Pilot
goggles down
Weighs 1.6 grams
$5.11 -
Item # P08
1:14 Scale Male Pilot
goggles up
Weighs 0.75 grams
$4.92 -
Item
# P09
1:16 Scale Male Pilot
goggles up
Weighs 1.4 grams
$4.92 -
Item # P10
1:19 Scale Male Pilot
goggles down
Weighs 1.3 grams
$4.92 -
Item # P11
1:20 Scale Male Pilot
goggles up
Weighs 0.7 grams
$4.92 -
Item # P12
1:24 Scale Pilots
3 per set
Weighs 0.5 grams per set
$4.92 -
Item # P13
1:36 Scale Pilots
3 per set
Weighs 0.3 grams per set
$4.92 -

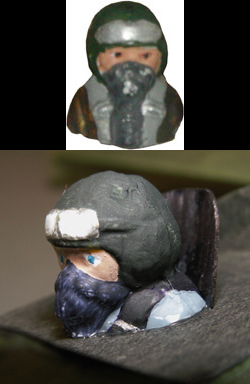

Item # P14
1:18 Scale Modern Jet Pilot
Bone Dome
Weighs .75 grams
$4.92 -
